1. Circuit Board Engineering: Proven Insights for Reliable Design and Manufacturing

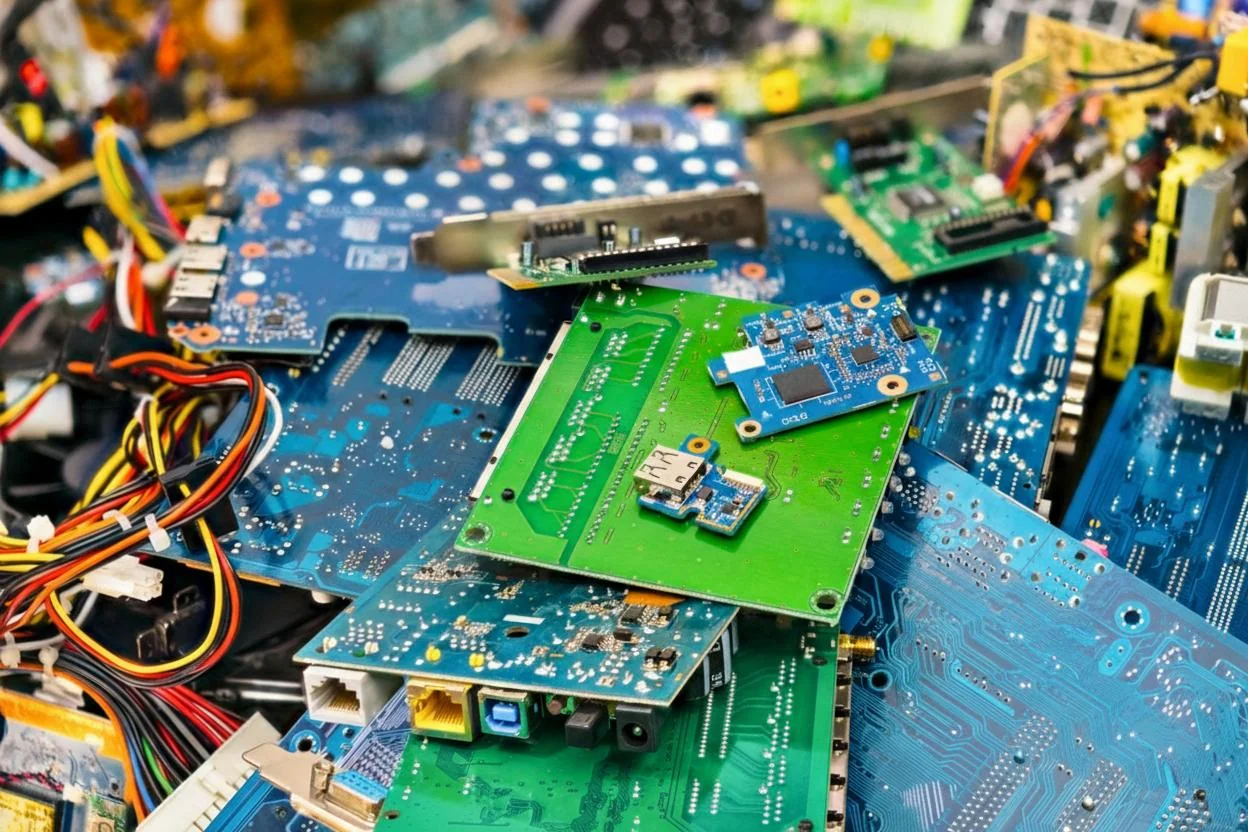

A circuit board, commonly known as a Printed Circuit Board (PCB), is the backbone of modern electronics — providing mechanical support and electrical connectivity. In high-reliability manufacturing, the difference between a robust and a failing board lies in design discipline, process control, and material selection. Below, based on 20 years of manufacturing experience at WellCircuits, we explore how circuit boards achieve performance consistency across demanding applications like aerospace, automotive, and telecom.
2. Fundamentals of circuit board
A circuit board is a laminated structure consisting of conductive copper layers and insulating substrates that form electrical pathways between components. The fundamental principle is to route signals, provide power distribution, and maintain controlled impedance under specific environmental conditions. In industrial practice, multilayer boards (4–20 layers) dominate due to their density and electromagnetic compatibility advantages. Standards such as IPC-2221B define generic design requirements, while IPC-4101C specifies laminate performance categories. Each layer’s copper thickness (typically 1 oz/ft² = 35 µm) determines current-carrying capacity — essential for both functional reliability and thermal management.
In manufacturing, we perform dielectric constant (Dk) tests on FR-4 materials. For example, WellCircuits’ lab measured Dk of 4.25±0.05 at 1 MHz using an HP4192A impedance analyzer — confirming laminate consistency. Such data ensures signal integrity in high-speed circuits exceeding 2 Gbps. As electronic designs migrate toward HDI (High Density Interconnect), laser-drilled microvia accuracy (±15 µm) becomes critical for layer interconnection.
3. When Circuit Board Matters & Decision Matrix
Selecting the right type of circuit board depends on environmental constraints, power demands, and lifecycle expectations. The analysis below shows how application requirements correlate with material and construction type. Engineers often use a decision matrix early in design to prevent downstream reliability risks.
| Application | Typical Board Type | Key Parameter | Remarks |
|---|---|---|---|
| Consumer Electronics | Standard FR-4 2–4 layer | Cost < US$0.05/cm² | Sufficient for mild thermal loads |
| Automotive Control | Metal-core PCB | Thermal conductivity >1.2 W/m·K | Handles high temperature zones (underhood) |
| Telecommunication Base Station | Rogers 4350B | Dk = 3.48, loss <0.0037 | Ideal for RF circuits and controlled impedance lines |
| Aerospace Systems | Polyimide multilayer | Continuous temp up to 250°C | Excellent thermal stability and flame resistance |
This matrix is directly derived from our internal qualification data collected during 2024–2025 product validations. Engineers should re-verify suppliers’ batch-level performance, considering manufacturer-specific variations in Tg and thermal expansion.
4. Standards, IPC/UL/RoHS Compliance
Compliance is the engineering backbone ensuring safety, consistency, and regulatory acceptance. According to IPC-A-600K (Acceptability of Printed Boards) and IPC-6012E (Qualification and Performance Specification for Rigid PCBs), boards must pass electrical continuity, insulation resistance, and thermal stress tests. UL94 V-0 rating defines flammability standards for base materials. For environmental compliance, RoHS 3 (Directive 2015/863/EU) restricts hazardous substances like Pb, Cd, and Cr(VI) to under 0.1% by weight. WellCircuits performs ASTM D3850 solder float tests and UL796 recognition on production samples weekly to ensure consistent certification.
Engineers must ensure stack-up documentation references IPC-4101 slash sheets (e.g., /126 for FR-4 with Tg≥170°C). Neglecting such detail increases risk during NASA-grade thermal cycling (–55°C to +125°C, 500 cycles). Proper labeling and traceability documentation are non-negotiable in defense and aerospace sectors.
5. Technical Performance Metrics & Comparison Table
Circuit board performance is quantitatively verified across electrical, mechanical, and thermal parameters. The table below summarizes typical test conditions and ranges based on WellCircuits reliability database.
| Parameter | Standard Reference | Typical Value Range | Test Condition |
|---|---|---|---|
| Insulation Resistance | IPC-TM-650 2.6.3.2 | >1×10⁹ Ω | 100V DC, 23°C/50%RH |
| Thermal Stress (Solder Float) | IPC-TM-650 2.6.8 | No delamination after 288°C for 10s | Single float cycle |
| CTE (Z-axis) | IPC-4101 /126 | <70 ppm/°C | 25–250°C range |
| Peel Strength | IPC-TM-650 2.4.8 | >1.0 N/mm | After soldering, 30s dwell |
These measured metrics are vital in predicting long-term reliability. In our 2025 case study for a telecom client, a reduction in Z-axis CTE by switching to a low-expansion prepreg lowered via failure rate from 0.8% to 0.03% under repeated reflow trials. The improvement validated thermal expansion simulation models against empirical data, illustrating how disciplined material selection directly impacts field reliability.
6. Failure Modes & Root Cause Analysis
Typical circuit board failures arise from interconnect fatigue, plating voids, solder joint microcracks, and chemical contamination. The root causes can be multifactorial — involving design geometry, inadequate cleaning, or over-etching. WellCircuits’ reliability lab commonly identifies six major failure types through cross-section microscopy and X-ray tomography:
- Copper barrel cracks from excessive Z-axis expansion (observed >90 ppm/°C).
- Delamination near resin-rich zones in low-Tg materials under infrared reflow.
- CAF (Conductive Anodic Filament) growth in high-voltage traces due to residual ionic contamination.
- Pad lifting caused by insufficient peel strength (<0.7 N/mm) after aging at 85°C/85%RH for 500 hrs.
- Open circuits due to incomplete via plating (less than 18 µm thickness).
- Soldermask bleed creating insulation gaps measured under IPC-TM-650 2.3.25.
Root cause analysis involves correlating electrical test failures with microsection data. For example, in a 2024 automotive ECU batch, via cracks were traced to CTE mismatch between core and prepreg. By upgrading Tg from 135°C to 180°C material and optimizing lamination pressure to 190 psi, the failure rate dropped dramatically. Each corrective action is documented under our internal reliability log for traceability and process refinement.
7. Cost Drivers & Optimization Strategies
Circuit board cost is primarily driven by layer count, material type, copper weight, surface finish, and test coverage. The cost breakdown typically reveals substrate (~35%), labor (~20%), finish (~15%), yield (~10%), and logistics (~20%). Optimization thus requires establishing a balance between manufacturability and element performance.
To minimize total cost of ownership, WellCircuits recommends adopting an IPC Class 2 construction for consumer-grade electronics where the failure consequence is limited. For mission-critical products, Class 3 remains non-negotiable but benefits from Design for Manufacturability (DFM) audits that identify cost-neutral improvements. Our field data shows that eliminating over-specified plating thickness (>25 µm) in low-current applications can save 8–12% material costs without reliability compromise. Additionally, batch-level AOI reprogramming improves throughput by 15% compared with the 2023 baseline, validating that productivity initiatives deliver quantifiable financial impact.
8. Emerging Technologies Around circuit board
The circuit board industry is entering a transformation phase driven by additive manufacturing, embedded components, and environmental sustainability. Additively made boards with 3D-printed conductive tracks are reducing prototyping time by up to 60%. Embedded passive components (planar inductors and capacitors) eliminate discrete parts and enhance signal damping in high-speed communication systems. According to IPC Electronics Industry Trend Report (2025), over 40% of new designs integrate fine-pitch BGA (<0.3 mm pitch) requiring HDI microvia structures and laser ablation accuracy within ±10 µm.
Materials innovation is equally disruptive — halogen-free epoxies and bio-based laminates are gaining traction to comply with stricter environmental directives globally. WellCircuits’ ongoing joint project with a European automotive OEM is testing graphene-enhanced prepregs that promise a 20× thermal conductivity boost compared with conventional FR-4. However, early-stage trials revealed bonding reliability challenges, highlighting the need for process adaptation before full-scale adoption.
9. Expert FAQ
1. What defines a high-quality circuit board?
Consistency in copper adhesion, thermal reliability, and compliance with IPC-6012E defines quality. Boards should retain structural integrity after three reflow cycles.
2. Why choose polyimide over FR-4?
Polyimide provides superior high-temperature endurance (>250°C) suitable for aerospace or oil exploration electronics.
3. How can we prevent barrel cracking?
Maintain Z-axis CTE below 70 ppm/°C and apply staggered via design with thick copper plating (>23 µm).
4. What is the optimal copper thickness for power boards?
Use 2 oz (70 µm) copper for traces carrying >10A current; ensure proper thermal dissipation via plane connections.
5. How does surface finish affect solderability?
ENIG finish ensures flatness and oxidation resistance, whereas OSP offers lower cost but shorter shelf life.
6. Are all circuit boards RoHS-compliant?
Not automatically. Compliance requires materials verified against RoHS 3 limits and periodic third-party audits.
7. Why use controlled impedance routing?
High-speed designs (>1 Gbps) need impedance control (typically 50Ω ±10%) to minimize signal reflection and timing skew.
8. How can we improve thermal performance?
Integrate thermal vias and select prepregs with higher thermal conductivity or metal-core substrates.
9. What predictive tests assess long-term reliability?
Use thermal cycling, humidity aging (85°C/85%RH), and CAF testing per IPC-TM-650 methods.
10. When should conformal coating be applied?
In harsh environments with condensation or ionic contamination risk, apply after final inspection and testing.
10. Conclusion & Call-To-Action
Designing and manufacturing a reliable circuit board requires rigorous standards adherence, empirical validation, and continuous optimization. As summarized below, reliability stems from engineered discipline rather than assumptions:
- Apply IPC, UL, and RoHS standards consistently during design and production.
- Measure and record all key performance metrics under repeatable conditions.
- Investigate and mitigate root causes using structured failure analysis.
- Optimize cost through data-driven material and process selection.
- Follow emerging technological trends while assessing readiness risks.
Engineers seeking in-depth guidance can explore our related technical references on PCB Testing Practices for practical implementation. Based on WellCircuits’ two decades of industry experience, maintaining evidence-based process control ensures each circuit board not only powers innovation but sustains it under real-world conditions.
Updated: December 2025 — Verified against the latest IPC standards and field failure analytics.
