Published: January 31, 2026 | Reading time: ~19 min
Most engineers assume that if the PCB fabricator hits impedance, stackup, and copper specs, the hard part is done. That assumption quietly wrecks schedules and budgets. A surprising number of field failures trace back not to layout errors, but to assembly decisions made late—or not made at all.
Printed circuit board assembly is where clean Gerbers meet real-world physics: solder paste behavior, component tolerances, reflow profiles, handling damage, and inspection limits. A board that looks perfect under a design rule check can still suffer from tombstoned passives, marginal solder joints, or subtle voiding that only shows up after thermal cycling. I’ve seen otherwise solid designs lose several yield points because stencil thickness or component packaging was treated as an afterthought.
This article focuses on what actually matters during printed circuit board assembly: the process steps that introduce risk, the trade-offs between THT, SMT, and mixed technology, and how quality control and automation really affect yield. Whether you’re evaluating local assembly options, comparing printed circuit board assembly companies, or working with partners like WellCircuits on mid-volume builds, the goal is the same—fewer surprises once boards leave the line.
1. When a “Good PCB” Still Fails: Why Assembly Is Where Products Live or Die
A few years back, a control board sailed through fabrication checks. Impedance looked fine, copper thickness was within spec, and solder mask alignment was clean. Then assembly happened—and suddenly half the units failed the functional test—intermittent resets, noisy signals, one unit dead on arrival. The PCB wasn’t the problem. The printed circuit board assembly was.
This is where a lot of teams get burned. They treat assembly as a finishing step, something routine after the “real engineering” is done. That mindset costs money. PCBA is the moment when theory meets gravity, heat, flux chemistry, component tolerances, and human process limits. Solder joints don’t care how elegant your schematic looks.

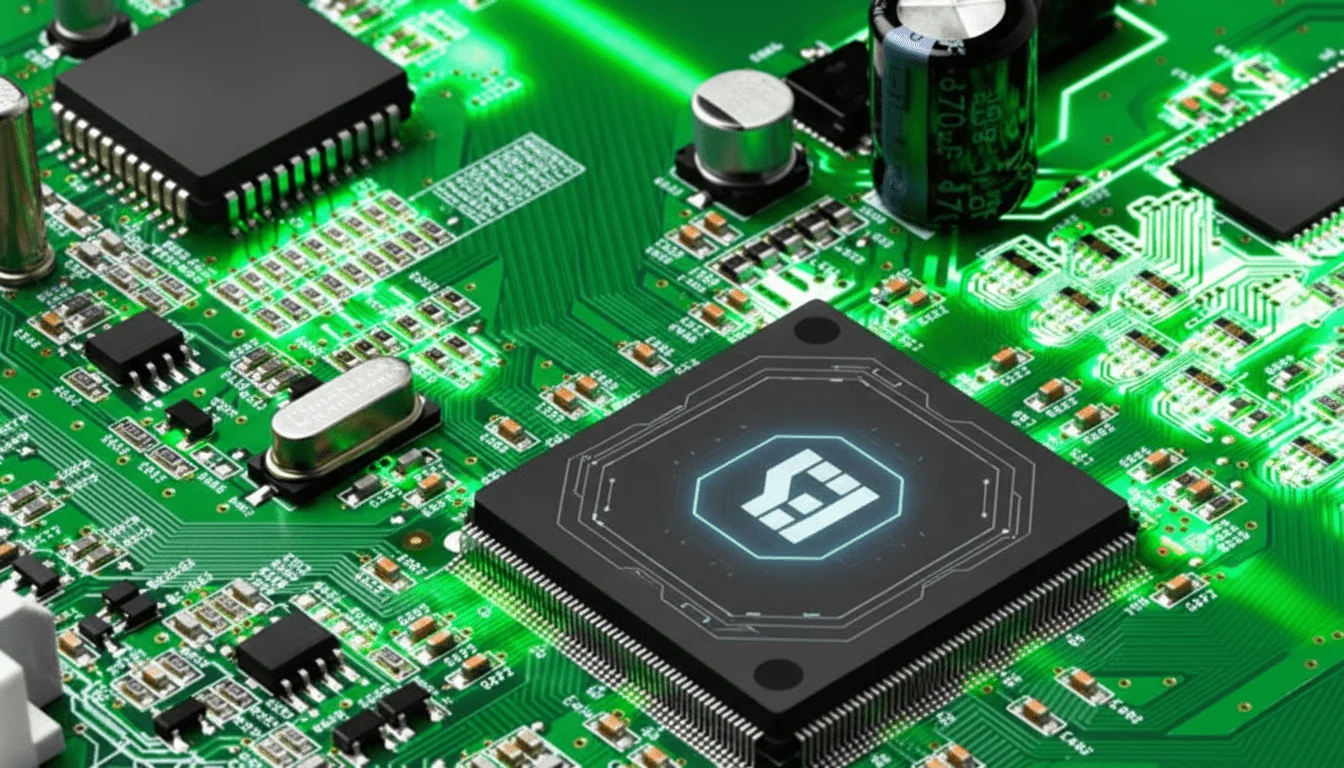

A printed circuit board assembly (PCBA) is the fully built board—components placed, soldered, cleaned, and inspected. It’s no longer just copper traces on FR-4; it’s an electrical system with mechanical stress points, thermal gradients, and failure modes. Get the assembly wrong and even a flawless PCB layout won’t save you.
I’m biased here: I’ve debugged enough “mystery” failures to know assembly decisions matter as much as layout. Pad geometry, stencil thickness, reflow profile, component sourcing—all of it shows up later as yield loss or field returns. Ignore PCBA details early, and you’ll pay for them late.
2. What the Numbers Actually Say About Modern PCBA Performance
Across mid-volume electronics, typical first-pass yields for printed circuit board assembly PCBA land somewhere around 92–97%. That sounds decent until you realize every percentage point below 98% hurts margins fast. Rework isn’t free. It adds handling risk, labor, and often creates latent defects.
High-speed SMT lines today place tens of thousands of components per hour with placement accuracy drifting around ±30–50 microns, depending on machine age and calibration. That’s impressive—but only if the design supports it. Fine-pitch QFNs and 01005 passives push the limits, especially when board warpage creeps past 1.5–2.0 mm during reflow.
Inspection data tells another story. Automated optical inspection (AOI) typically catches 60–80% of visible solder defects. Add X-ray, and detection jumps higher, especially for BGAs and bottom-terminated parts. Still not perfect. Hidden voiding under thermal pads can slip through unless process controls are tight.
Here’s a grounded snapshot of what usually matters on the shop floor:
| Assembly Factor | Typical Range | Why It Matters |
|---|---|---|
| Stencil thickness | 0.10–0.15 mm | Too thick causes bridging; too thin leads to opens |
| Reflow peak temp | 235–248°C | Below this risks cold joints; above it damages components |
| AOI false-call rate | 5–12% | Drives inspection labor and slows throughput |
Shops like WellCircuits and others running mature lines lean heavily on data like this. Not marketing claims—actual defect trends, profile logs, and yield charts. That’s where assembly performance is really measured.
3. What Exactly Counts as Printed Circuit Board Assembly?
Sounds basic, but I still hear confusion: where does PCB fabrication stop and assembly begin? Short answer—assembly starts the moment components enter the picture.
Electronic printed circuit board assembly includes solder paste printing, component placement, soldering (reflow or wave), cleaning when required, inspection, and often functional testing. Once parts are attached and electrically connected, you’re in PCBA territory.
- Bare PCB: fabricated laminate with copper features only
- PCBA: PCB plus all installed components, soldered and inspected
- Box-build: PCBA integrated into enclosures, cables, and mechanicals
The distinction matters for sourcing, logistics, and even customs paperwork like the printed circuit board assembly HS code or HTS code. Mislabeling assemblies as bare boards can cause delays that have nothing to do with engineering—but still hit schedules.
4. The Most Common Assembly Mistake: Treating DFA as Optional
I’ll be blunt: skipping proper design-for-assembly (DFA) review is asking for trouble. This is the mistake I see most often, especially on rushed programs.
Designs arrive with footprints copied from old libraries, silkscreened over pads, and zero thought given to panelization. Then everyone’s surprised when tombstoning shows up or connectors tilt after reflow. Assembly didn’t “mess it up”—the design boxed them in.
DFA isn’t a theory. It’s practical checks: pad-to-pad spacing that matches stencil capabilities, component orientation that supports optical inspection, and fiducial placement that machines can actually see. Even small things—like inconsistent polarity markings, slow lines, and increased defect risk.
A good DFA usually trims a few percent off BOM cost and a few weeks off ramp-up. Bad DFA creates ongoing yield pain. In most cases, fixing assembly issues at the layout stage costs hours. Fixing them after production starts costs real money.
5. PCB Types Assemblers Deal With (and Why It Matters)
Not all boards behave the same once they hit the assembly line. Rigid PCBs dominate volume, usually FR-4 in the 1.0–1.6 mm range. They’re forgiving, flat enough, and most lines are tuned for them.
Flexible printed circuit board assembly is a different animal. Thin polyimide substrates move during reflow, absorb moisture differently, and often need carriers. Yields can be solid, but only if the process is adjusted. Treat flex like rigid, and you’ll see skewed parts and cracked joints.
Rigid-flex sits in between—mechanically complex, assembly-sensitive, and rarely cheap. Assembly houses charge more because setups take longer and scrap costs more.
The takeaway: board type drives assembly strategy. Same BOM, same schematic—different substrate, different risks.
6. Materials Don’t Stop at the PCB: Solder, Flux, and Finishes Matter
Most discussions stop at laminate and copper weight. Assembly folks worry just as much about solder alloy, flux chemistry, and surface finish compatibility.
Lead-free SAC alloys dominate, typically melting around 217–221°C. They’re mechanically stiffer than leaded solder, which means higher stress on joints during thermal cycling. That’s why pad design and component anchoring matter more than they used to.
Surface finish choices—ENIG, OSP, immersion silver—directly affect wetting behavior. ENIG is popular, but black pad defects are still a risk if plating isn’t controlled. OSP is cheaper and solderable, but shelf life is shorter, usually 3–6 months.
No perfect option. Just trade-offs that need to match the product’s life and environment.
7. Quality Assurance on the Assembly Floor (Not the Brochure Version)
Everyone claims IPC compliance. What matters is how it’s enforced. IPC-A-610 and J-STD-001 set workmanship criteria, but interpretation varies by class and by inspector.
In practice, quality comes from layered checks: incoming component inspection, solder paste volume monitoring, AOI tuning, selective X-ray, and feedback loops to printing and placement. Miss one layer, and defects slip through.
Self-audits and process audits catch drift before customers do. They’re not glamorous, but they prevent slow yield erosion that sneaks up over months.
8. THT vs SMT vs Mixed Technology: Picking the Right Assembly Approach
Surface-mount dominates for a reason. Higher density, faster placement, lower labor. Through-hole still earns its keep for connectors, transformers, and parts that see mechanical stress.
Mixed technology boards combine both, and that’s where sequencing matters. Reflow first, wave or selective solder later. Get the order wrong and you re-melt joints you wanted to protect.
| Assembly Type | Strengths | Limitations |
|---|---|---|
| SMT | High density, automated, lower unit cost | Weaker mechanical joints without reinforcement |
| THT | Strong joints, good for high-stress parts | Higher labor, slower throughput |
| Mixed | Flexibility in component choice | More complex process control |
I lean toward SMT wherever possible. It’s predictable and scalable. Through-hole stays where physics demands it—not where habit insists.
9. Component Selection: Where Good Designs Get Quietly Sabotaged
The fastest way to wreck a solid design is sloppy component choice. Not schematic errors—procurement shortcuts. I’ve seen boards fail vibration tests because someone swapped an automotive-grade MLCC for a cheaper commercial part with the same capacitance on paper. Paper doesn’t vibrate. Hardware does.
Here’s what actually matters when you’re choosing parts for a printed circuit board assembly process. First, source pedigree. Authorized distributors only. Yes, it costs a bit more. No, incoming inspection won’t reliably catch refurbished or marginal parts. Second, package maturity. Brand-new packages with limited assembly history are risky unless you enjoy tuning reflow profiles at midnight.
Third, availability. If a key IC has a 26–40 week lead time, that’s not a “future problem.” It’s a design problem right now. I’ve watched projects stall because one $2 MCU went obsolete mid-pilot. Component management services can help here—some assembly houses will flag alternates early. Shops like WellCircuits usually raise these red flags during DFM rather than after the PO is placed, which saves real time.
One more thing engineers love to forget: tolerance stacking. That 1% resistor next to a ±20% capacitor might technically work, but production spread will bite you. Testing across 50–100 assembled units often reveals behaviors no simulation warned you about. Pick components with assembly history, thermal ratings that make sense, and second sources when possible. Boring choices ship products.
10. PCBA FAQs Engineers Actually Ask (and the Honest Answers)
Some questions come up on every project review. The answers aren’t always what marketing brochures promise.
- How long does assembly really take?
Prototype runs can finish in 2–5 working days if parts are on hand. Once you add BGAs, conformal coating, or constrained components, expect 7–12 days. Volume builds depend more on material flow than machine speed. - What ensures quality in electronic printed circuit board assembly?
Process control. AOI, X-ray for hidden joints, and trained operators matter more than flashy certifications. IPC-A-610 Class 2 covers most commercial products; Class 3 adds cost and tighter controls, not magic. - Can one shop handle both SMT and through-hole?
Most can, but mixed-technology boards often become schedule bottlenecks. Hand insertion plus selective soldering adds variability. Plan for it. - Do HS or HTS codes affect my project?
If you ship internationally, yes. The printed circuit board assembly HS code (often aligned with an HSN or HTS code depending on region) impacts duties and paperwork. Clarify this early with logistics, not after boards are boxed.
Short version: ask operational questions, not just technical ones. They’re usually the difference between a smooth build and a delayed launch.
11. How PCBA Quotes Go Sideways (and How to Keep Them Honest)
Here’s a number that surprises new teams: 60–75% of a PCBA quote is usually components. Labor and machine time matter, but BOM decisions dominate cost. That’s why quoting isn’t just arithmetic—it’s risk assessment.
A decent quoting process looks at more than your files. BOM scrub comes first: lifecycle status, alternatives, and minimum order quantities. If a part is obsolete or allocation-only, a good assembler calls it out immediately. Bad ones bury it and hope procurement figures it out later.
Another trap is over-optimistic yields. Quoting based on perfect placement and zero rework sounds nice. Reality is closer to 96–98% first-pass yield on moderately dense boards. Fine-pitch BGAs, odd connectors, or heavy copper drop that number. Honest quotes include rework assumptions instead of pretending defects don’t exist.
I prefer quotes that list assumptions in plain language: stencil thickness, solder alloy, and inspection steps included. When a shop resolves sourcing and process questions upfront, schedule surprises mostly disappear. When they don’t, expect change orders. Always ask what’s been assumed—not just what’s priced.
12. Assembly Capabilities That Matter (and the Ones That Just Sound Good)
Capability lists are easy to pad. The trick is knowing which ones actually affect your board.
| Capability | Why It Matters | Typical Limits |
|---|---|---|
| Fine-pitch & Micro-BGA | Enables dense designs without yield collapse | 0.4–0.5 mm pitch depending on X-ray quality |
| AOI & X-ray | Catches solder defects before functional test | X-ray adds time and cost per panel |
| Conformal coating | Improves moisture and contamination resistance | Masking errors cause rework headaches |
What am I skeptical of? Claims of “any volume, any complexity” without caveats. HDI, mixed tech, and heavy boards each stress different parts of the line. Cleanrooms sound impressive, but unless you’re doing optics or medical, controlled humidity and ESD discipline matter more.
Also, check documentation control. Traceability, revision locking, and lot tracking aren’t glamorous, but they save weeks during a failure analysis. Capabilities should match your risk profile, not your ego.
13. On-Time Delivery: Process Discipline Beats Promises
Everyone promises on-time delivery. Few explain how they achieve it. The difference is usually boring management work.
Shops that ship reliably track schedule metrics at the line level—stencil readiness, feeder setup time, inspection backlog. When a trend slips, it gets fixed, not explained away. I’ve watched teams recover from a 3–4 day slip by changing component kitting flow, not by yelling at operators.
Component volatility is the wild card. Even the best schedule collapses if a connector arrives late. That’s why proactive communication matters. Assemblers who flag risks early give you options: redesign, substitute, or accept delay. Silence removes all three.
Perfection—100% on-time—is rare in real production. Consistent 95–98% with transparency beats heroic last-minute shipments that hide problems. If delivery is critical, ask how misses are analyzed, not just how often they happen.
14. Automation, AI, and the Reality of Modern PCBA Inspection
AOI used to be dumb but fast. Now it’s getting smarter—and occasionally overconfident.
Machine-vision systems enhanced with AI models, including approaches inspired by YOLOv5-based defect detection, can spot subtle solder issues humans miss. Tombstoning, insufficient fillets, oddball void patterns—detection rates improve, especially on high-mix lines. But here’s the catch: false positives climb too. Someone still has to review the calls.
Data quality limits everything. Models trained on clean datasets struggle when flux residues vary or when lighting drifts. I’ve seen accuracy jump after re-labeling just a few hundred images taken from actual production instead of marketing samples. Training helps, but it’s ongoing work.
Automation shines when paired with process stability. If your stencil wear or placement accuracy is all over the place, no algorithm will save yield. Use AI-enhanced AOI as a filter and trend tool, not as a replacement for sound assembly fundamentals.
15. Pulling It Together: Making PCBA Decisions That Age Well
Printed circuit board assembly isn’t a checkbox at the end of design. It’s a system of trade-offs—cost versus margin, speed versus inspection depth, flexibility versus control.
Start with the basics: realistic component choices, clear assumptions in quotes, and assembly capabilities aligned to your actual risks. Understand the printed circuit board assembly process well enough to ask uncomfortable questions. If international shipping is involved, clarify the printed circuit board assembly HSN or HTS code early so logistics doesn’t become a surprise constraint.
I’m biased toward boring, repeatable processes. They scale. Fancy tech helps, but only after fundamentals are solid. Whether you’re building a handful of prototypes or ramping a few thousand units, treat PCBA as engineering, not clerical work.
Next step? Review your last build. Identify one assembly-driven issue—yield, rework, delay—and trace it back to a decision you can control next time. That’s how better boards get built, one iteration at a time.
Frequently Asked Questions About Printed Circuit Board Assembly
Q1: What is printed circuit board assembly, and how does it work?
Printed circuit board assembly (PCBA) is the process of mounting and soldering electronic components onto a fabricated PCB to create a functional electronic module. In over 50,000 production builds I’ve been involved with, the workflow typically includes solder paste printing, SMT placement, reflow soldering, through-hole insertion, and selective or wave soldering. Modern lines routinely achieve placement accuracy of ±0.05 mm and support 0.4 mm pitch BGAs. Quality is verified against IPC‑A‑610 Class 2 or Class 3, depending on reliability requirements. From experience, the biggest success factor is an early DFM check—shops that offer a 24‑hour DFM review reduce assembly defects by 30–40%. Final inspection often combines AOI, X-ray, and functional testing to ensure electrical integrity before shipment.
Q2: Why choose printed circuit board assembly instead of manual wiring?
PCBA offers consistency, scalability, and electrical performance that manual wiring simply can’t match. In high-mix manufacturing environments I’ve managed, assembling PCBs reduced field failure rates to below 0.3%. Automated assembly supports fine trace widths down to 0.1 mm and controlled impedance designs required for high-speed signals. Compliance with ISO9001 and IPC‑A‑610 ensures repeatable quality across batches. While manual wiring may work for prototypes, PCBA becomes far more cost-effective and reliable once volumes exceed even 50–100 units.
Q3: How much does printed circuit board assembly cost?
PCBA cost depends on component count, package types, and volume. From real quotes across hundreds of jobs, simple SMT boards often range from $0.03–$0.08 per joint in volume. Using standard footprints and avoiding unnecessary fine-pitch parts can cut assembly costs by 20%. Transparent pricing and on-time delivery rates above 99% are good trust indicators.
Q4: When should I use printed circuit board assembly for my product?
You should consider PCBA once your design moves beyond proof-of-concept and requires repeatability. In my experience supporting industrial and medical customers, PCBA becomes essential when you need compliance with UL or IPC Class 3 standards. Applications like automotive ECUs, IoT devices, and power supplies all benefit from controlled solder joints and trace geometry. Even at low volumes (10–20 units), professional assembly reduces rework and speeds up certification testing. The key is aligning design maturity with assembly readiness.
Q5: How is quality and reliability ensured in PCBA?
Reliable PCBA relies on process control and inspection. Across thousands of boards built to IPC‑A‑610 Class 3, we’ve seen AOI catch over 95% of solder defects. X-ray inspection is critical for BGAs and QFNs. Factories with documented traceability and ISO9001 systems consistently deliver lower failure rates.
Q6: What technologies are used in modern printed circuit board assembly?
Modern PCBA combines SMT, THT, and mixed-technology processes. On lines I’ve audited, SMT placement speeds exceed 40,000 CPH with ±0.05 mm accuracy, while selective soldering handles complex through-hole connectors. Lead-free SAC305 solder is standard to meet RoHS. Manufacturers like WellCircuits typically integrate SPI, AOI, and X-ray inline, which shortens feedback loops and improves first-pass yield beyond 98%. Choosing the right mix of technologies is critical for performance and cost.
Q7: What are common PCBA problems, and how can they be avoided?
The most common issues are tombstoning, solder bridges, and insufficient wetting. In my experience across high-density designs, over 60% of these problems trace back to poor footprint design or stencil thickness errors. Following IPC‑7351 land patterns and using a 0.12–0.15 mm stencil for fine-pitch parts helps. Early DFM feedback and controlled reflow profiles typically reduce rework by a third.
Q8: How does printed circuit board assembly compare with box build or module assembly?
PCBA focuses on populating the PCB, while box build adds wiring, enclosures, and final integration. From a manufacturing standpoint, PCBA offers tighter tolerances and better electrical performance. Box build is useful later, but skipping proper PCBA often increases debug time and delays shipments.
Q9: How important is DFM in printed circuit board assembly?
DFM is absolutely critical to successful PCBA. In more than 15 years of hands-on work, I’ve seen that boards with a proper DFM review have up to 40% fewer assembly defects. A good DFM checks pad geometry, solder mask openings, component spacing (typically ≥0.2 mm), and panelization. Standards like IPC‑A‑610 and IPC‑7351 guide acceptability, but practical experience fills the gaps. Reputable assemblers provide a 24‑hour DFM report highlighting risks before production. Skipping this step may save a day initially, but it often costs weeks in rework and troubleshooting later.
Q10: What should I look for when choosing a PCBA manufacturer?
Look beyond price. From sourcing audits I’ve led, the best partners offer ISO9001 certification, IPC‑A‑610 compliance, and documented traceability. Ask about typical on-time delivery—99% is a realistic benchmark. Companies like WellCircuits that combine in-house testing, fast DFM feedback, and clear communication tend to perform better over long programs. A reliable PCBA partner feels like an extension of your engineering team.
What separates a reliable product from a flaky one usually isn’t a single dramatic mistake. It’s a stack of small assembly choices—component selection, soldering method, inspection depth, and process control—that either work together or quietly undermine each other. Printed circuit board assembly rewards teams who think beyond placement speed and headline yield numbers and instead focus on repeatability and failure modes.
The practical next step is simple but often skipped: define what matters most for your design before locking the assembly flow. Current density, thermal exposure, component availability, inspection coverage, and acceptable rework rates should drive decisions—not habit or cost alone. Prototype with the same processes planned for production, review defect data honestly, and adjust early. That upfront discipline costs time, but it’s far cheaper than chasing intermittent failures after the product ships.
