4 Layer Rigid Flex PCB

These rigid flex PCBs have top layer, GND, VCC, and bottom layer. You can combine the layers of rigid printed circuit boards through buried or through holes.

4 layer rigid flex pcb manufacturers, factory, suppliers from China. The purpose of rigid flex pcb design guide is to enable you to design a highly reliable with the most market competitive price.

4 Layer HDI RIGID-FLEX PCB W/ Blind Buried Vias

Product Description

This is a 4 layer HDI rigid flex PCB with blind & buried vias. Built up with most common rigid insulation material-FR4 and Dupont Polyimide, it has nice bending performance. Also its 0.6mm thick rigid area lends this board with good strength. All laminate material are from an authorized distributor under WellCircuit’s check.

By applying ENIG finish, this rigid flex circuit gets benefits like excellent surface planarity, good oxidation resistance, and suitability for movable contacts.

Layer	4L
Type	Rigid-Flex PCB
Material	Dupont PI & FR-4
Finish	ENIG
Features	Blind & buried vias

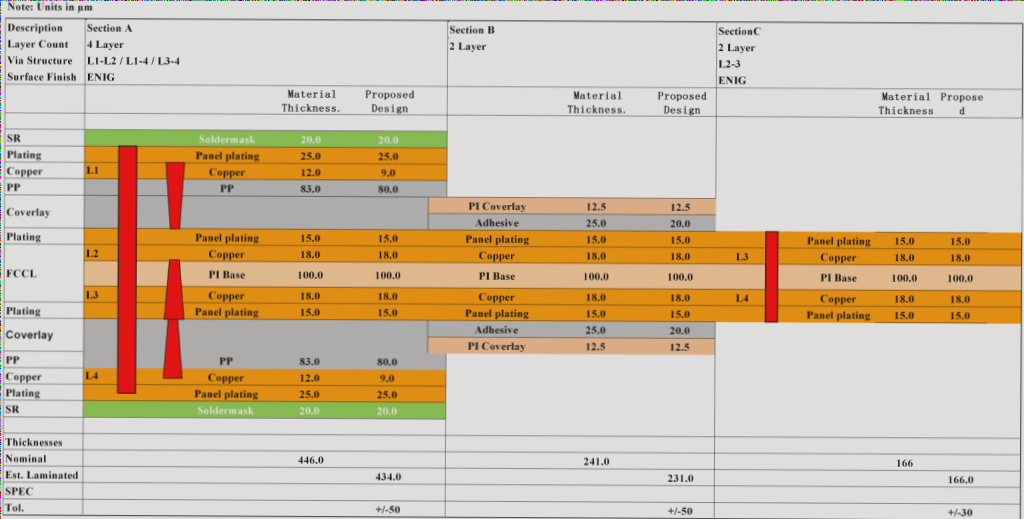

4 Layer Rigid Flex PCB Stack-up

Check Our Equipment

FLEX PCB Laminate Cutting Machine

Automatic Exposure Machine

Plasma Cleaning Machine

Increase the binding force of rigid-flex PCB

AOI Machine

2mil Above Circuit Detection Scanning

Brown Oxide Line

Pretreatment of inner layer pressing

LDI Machine

Get Instant Quote Now

WellCircuits ADVANTAGES

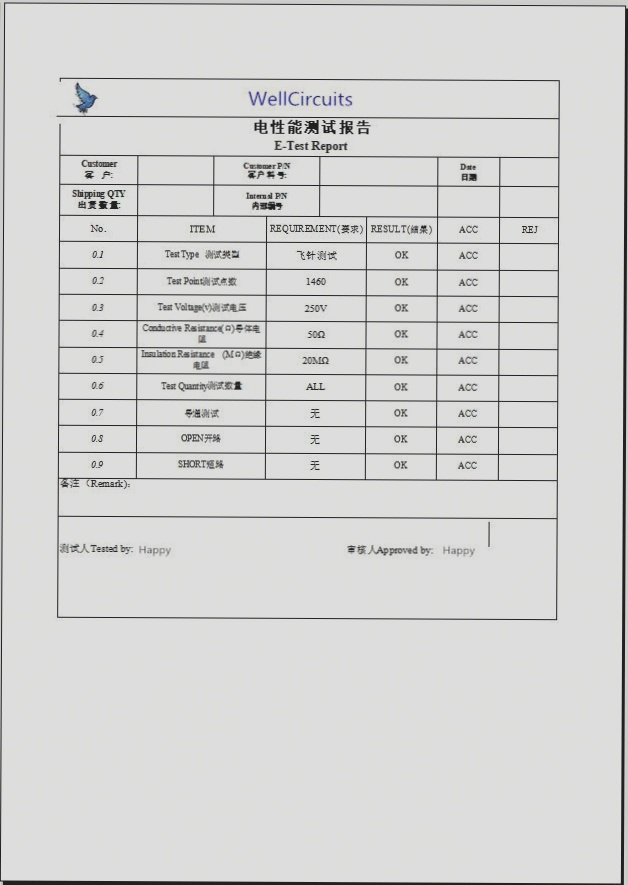

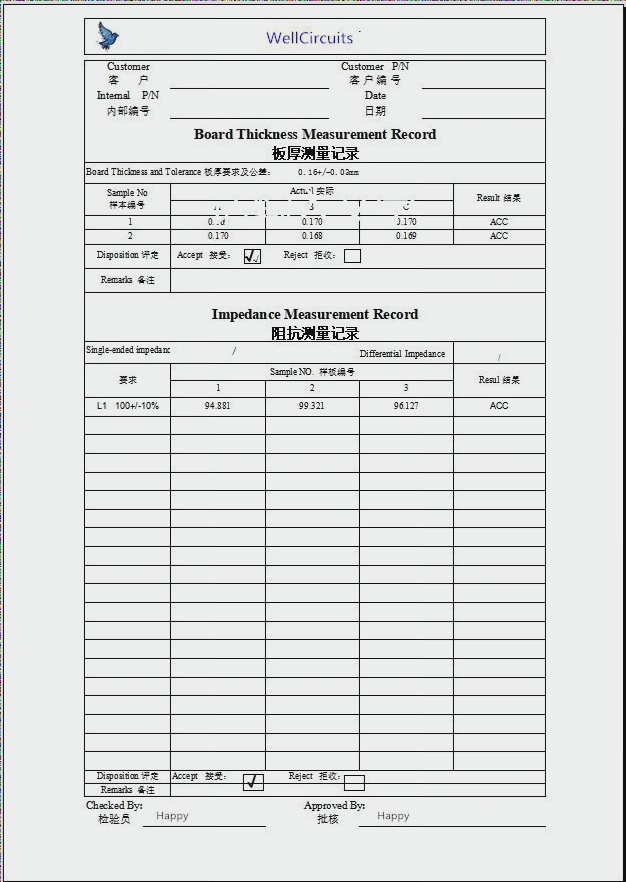

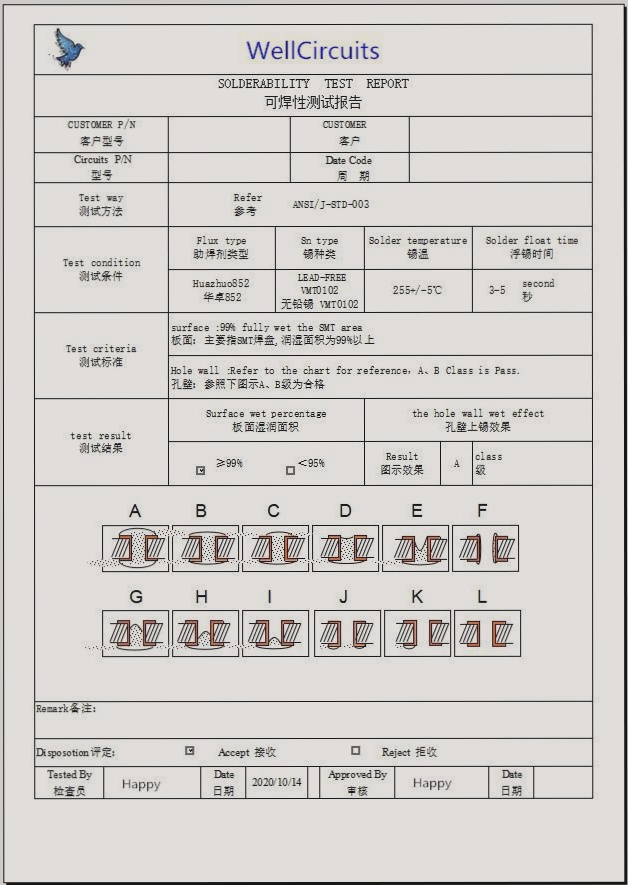

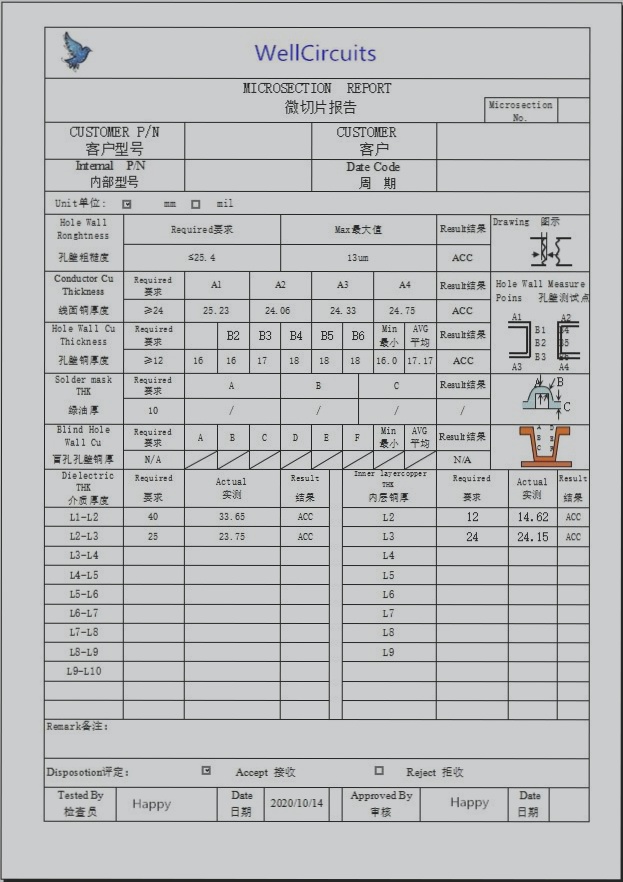

professional quality inspection reports
