Product Description

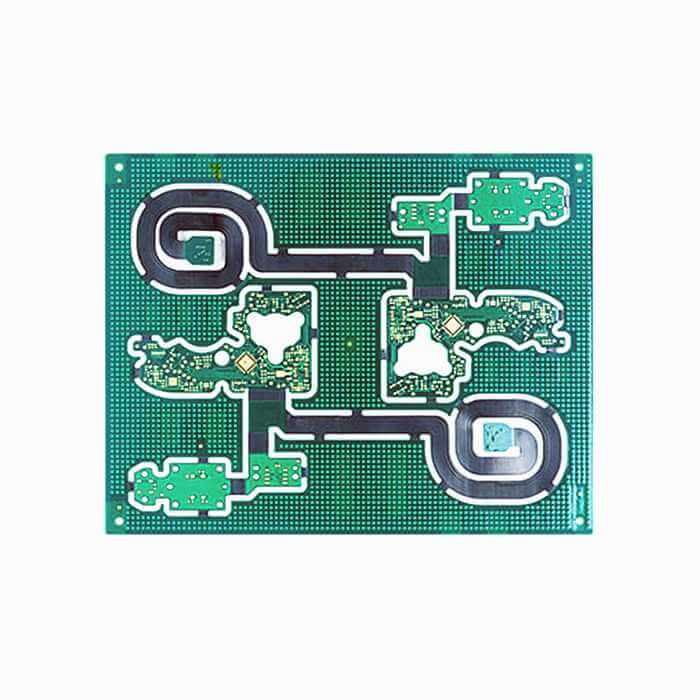

This is a 12 layer HDI Rigid Flex PCB built for High-end Digital Camera.

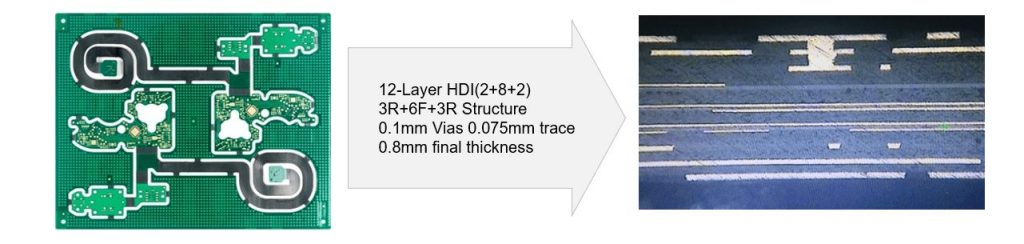

Featuring 3R+6F+3R stack up, this flex-rigid PCB is designed to meet high circuit density demand.While its fabrication is harder than it sounds. We drilled both vias by CO2 laser which is more accurate than mechanical drilling.
Other properties of this 12 layer rigid flex circuit: ENIG finish treatment, 0.075/0.075mm Min. trace/ space, V0 Flame Retardant.
| Type | HDI Rigid Flex PCB |
|---|---|
| Layer | 12L |
| Structure | 3R+6F+3R |
| Thickness | 0.8mm |
| Min Trace/Space | 3mil /3 mil |
| Finish | ENIG |
| Min hole size | 0.1mm |
Capability
Questions
For rigid-flex PCB, we can build up to 26 layer.
For flex circuit, we can make up to 12 layers.
Yes, we can do ENIG, Imm Tin, Imm Ag, OSP, Gold Finger as you need.
We have varied standard for different layers.
For 2- 4 Layers: 500 x 1000mm
For>=5 layers: 500 x 800mm
Regular 2-4 layers Rigid PCB 48 hours, Regular 4-6 layers Rigid-Flex PCB 5 days.
Yes, our thinnest board is 0.1mm.
