I still remember the first time a hardware founder asked me a blunt question. “Can I just print my circuit board today?” He had a demo in four days. His PCB order would arrive in seven. The stress was real.

A “PCB board printer” can mean a few different tools. Some machines print solder paste. Some dispense conductive ink for quick trials. Some people even adapt a 3D printer to draw etch resist. Each path is effective, but each has its limitations. The wrong choice wastes time and money.

This guide explains what a PCB circuit board printer is in produced. I will also cover maker-style methods, like a 3d printer pcb board workflow. You will see where they excel and where they fall short. I will tie choices back to IPC standards, factory control steps, and real risks. You will finish with a short checklist you can use to buy, budget, and plan.

What do people mean by “PCB board printer”

The phrase is used loosely in electronics. I see three common meanings in RFQs and emails. The meaning matters because budgets and results differ.

In assembly lines, “printer” often means a solder paste printer. It pushes paste through a stencil. That paste forms the solder joints after reflow. This is standard SMT flow.

In labs, “printer” can mean a jet printer. It jets solder paste without a stencil. That helps when boards change daily. It also helps for cavities or odd shapes.

In maker spaces, “printer” can mean a tool that draws or deposits conductive material. Some people mount a pen on a 3D printer. They “plot” traces. Some use resin printing to make an etch mask. The final copper still comes from etching, not printing metal.

Solder paste printing is for PCBA. It does not create copper traces.
Jet printing is a stencil-free paste deposit. It targets fast changeovers.
Conductive ink or etch-resist plotting is for experiments and quick prototypes.

Where a PCB printer fits in the real PCBA flow

In a standard SMT line, printing comes before placement. The printer deposits paste on pads. The pick-and-place machine sets parts. The oven melts paste and forms joints.

This matters because printing errors create downstream defects. I have seen one small stencil issue cause a full day of rework. Tombstoning and bridges often start at past.

Most factories control this with process checks. You will hear terms like IQC, IPQC, and FQC. The printer setup is usually controlled under IPQC. Paste life and temperature are logged. Stencil cleaning cycles are tracked.

For acceptance, workmanship is judged using IPC-A-610. For soldering quality, J-STD-001 is the common spec. For bare board quality, IPC-A-600 is used. If you want repeatable output, you want these standards in the contract.

SPI checks paste volume and alignment. It reduces openings and bridges.
AOI checks placement and solder shape after reflow.
X-ray is used for BGA and hidden joints.

Stencil printer vs jet printer: what changes day to day

A stencil printer is simple in concept. You need a stencil for each design. That adds cost and lead time. It also improves repeatability when the design is stable.

A jet printer can skip the stencil. The machine jets solder paste dots. Jetting shines when you run many variants. It also helps when pads differ a lot. It can place tiny dots and larger deposits on the same board.

You might have seen systems like the MY700 Jet Printer. It is designed for micrometer-level accuracy and software control of volume. Those claims are vendor-specific, so you should verify with a demo. Still, the idea is real. Jet printing is used in advanced lines.

Table: Practical comparison of common “PCB board printer machine” types

Stencil solder paste printer	Solder paste through stencil	Stable designs, volume builds	Needs stencil per revision. Cleaning and storage required.
Jet solder paste printer	Jetted paste dots	High-mix, fast changeovers	Higher capex. Process tuning can be harder.
Conductive ink dispenser	Conductive ink traces	Lab trials, sensors, learning	Conductivity and adhesion limits. Not like copper.
3D printer “pen plotter”	Etch resist ink or marker	Hobby prototyping	Resolution limits. Etch defects are common.

Can you really make a “3D printer PCB board” at home?

You can get close to simple boards. You cannot “print copper” with a normal desktop 3D printer. Not in a way that matches a real PCB shop.

What you can do is use the printer as a motion tool. People mount a pen and draw an etch resist. Then they etch away exposed copper. The copper traces remain.

I have helped teams validate footprints using this method. It can be enough for a quick LED board. It often fails on fine-pitch parts. It also struggles with consistent line width.

Resolution is the hard wall. Many hobby setups cannot hold trace and space below about 0.2 mm reliably. Even if the motion is accurate, the ink spread ruins the edges. Etching undercuts thin lines. The result is weak yields.

This method is best for wide traces and simple layouts.
It is risky for QFN, BGA fanout, or impedance control.
You still need PPE and chemical handling for etching.

Pen plotting on a 3D printer: the hidden mechanics.

The pen mount looks easy until you build one. The pen tip needs compliance. If the bed pushes hard, the tip gets crushed. If the pen wobbles, traces get fuzzy.

In one workshop, we used a mount with slight vertical travel. A spring or flexure helped. That reduced pressure spikes when the bed was not flat.

You also need to “trick” the slicer. Most slicers lift Z when crossing gaps. That feature was designed to stop ooze. With a pen, it stops unwanted lines. You set Z-lift high enough to clear the board. You then test on paper.

Expect tuning time. The pen ink thickness changes with speed. Corners tend to blob. Long lines can thin out.

Design a single-layer toolpath. Keep it simple.
Enable Z-lift on travel moves. Verify no drag marks.
Calibrate line width with speed and pen choice.
Etch a small coupon first. Check for breaks.

Resin printer etch-resist: why it works and why it still bites

SLA resin printers add a different trick. Cured resin can act as an etch resist. Uncured resin can be washed off. People have used this with ferric chloride etchant.

The setup is messy. You must avoid bubbles. Bubbles cause missing resist spots. Those spots become open circuits after etch.

The workflow often involves “abusing” the printer. The platform is moved and homed with manual sensor triggers. That is risky for the machine. It can also void warranties. You should know that up front.

Safety is not optional here. Resin needs gloves and ventilation. Etchant needs PPE and proper disposal. In a factory, chemical control is documented. At home, it is often ignored.

Do not shake resin. Bubbles ruin the image.
Warm etchant can speed etching. It also increases fumes.
Label waste clearly. Store it away from food areas.

Quality and standards: how to judge results without guessing

Home methods are fun, but most buyers need a predictable supply. That is where standards help. They give you shared language.

IPC-A-600 is used to grade bare boards. It covers things like annular ring, solder mask, and surface finish. IPC-6012 covers qualification and performance for rigid boards. For assembly, J-STD-001 defines soldering requirements. IPC-A-610 defines the acceptability of assemblies.

When you evaluate a printed paste process, ask about SPI. When you evaluate assembly, ask about AOI and X-ray. When you evaluate bare boards, ask about the electrical test. A flying probe is common for prototypes. Fixture test is common for volume.

Table: Inspection steps that catch printer-related defects

IPQC after paste	Paste offset, smear, insufficient volume	SPI or visual check	Process control aligned to J-STD-001 intent
Post-reflow	Bridges, opens, tombstones	AOI	IPC-A-610
Hidden joints	BGA voids and shorts	X-ray	IPC-A-610 (inspection criteria)
Bare board release	Ring, mask, plating quality	Microscope, cross-section when needed	IPC-A-600, IPC-6012

Cost questions: how to think about “PCB board printer price.”

People often ask for a single number. The reality is that “PCB board printer price” depends on what you mean by printer. A stencil printer, a jet printer, and a lab ink system are different classes.

I avoid quoting prices in articles. Vendor pricing changes often. Options and service plans change totals even faster. Shipping, installation, and training are also real costs.

Think in cost buckets instead. You pay for equipment. You pay for consumables. You pay for yield losses while tuning. You also pay for inspection time.

For stencil printing, stencils are a visible recurring cost. For jetting, maintenance and paste handling matter more. For conductive ink, ink cost can surprise you. For home etching, the cost is time and rework risk.

Ask vendors for a sample run on your Gerber and BOM.
Ask what Cp and Cpk targets they can support for paste volume.
Budget for SPI if you need a consistent fine pitch.

When is printer PCB board repair is the real needed?

Sometimes the search intent is not about making PCBs. It is about fixing a printer’s control board. I see this when people look for printer PCB board repair options.

Here is the hard truth. Many printer mainboards are not worth component-level repair. The fault may be a power stage, a shorted driver, or firmware lock. Parts may be hard to source. Time can exceed replacement value.

Still, repair can make sense in a service center setting. You need ESD control. You need proper rework tools. You also need an inspection.

In PCBA factories, rework is usually controlled with work instructions. IPC-7711/7721 is the common reference for rework and repair practices. If a supplier claims repair expertise, ask if they follow it. Ask how they prevent pad lift and heat damage.

Confirm the failure mode with power rail checks and thermal scan.
Use hot air with the correct nozzles for QFN and BGA parts.
Record serial numbers and test results for traceability.

Real use cases: labs, universities, and production floors

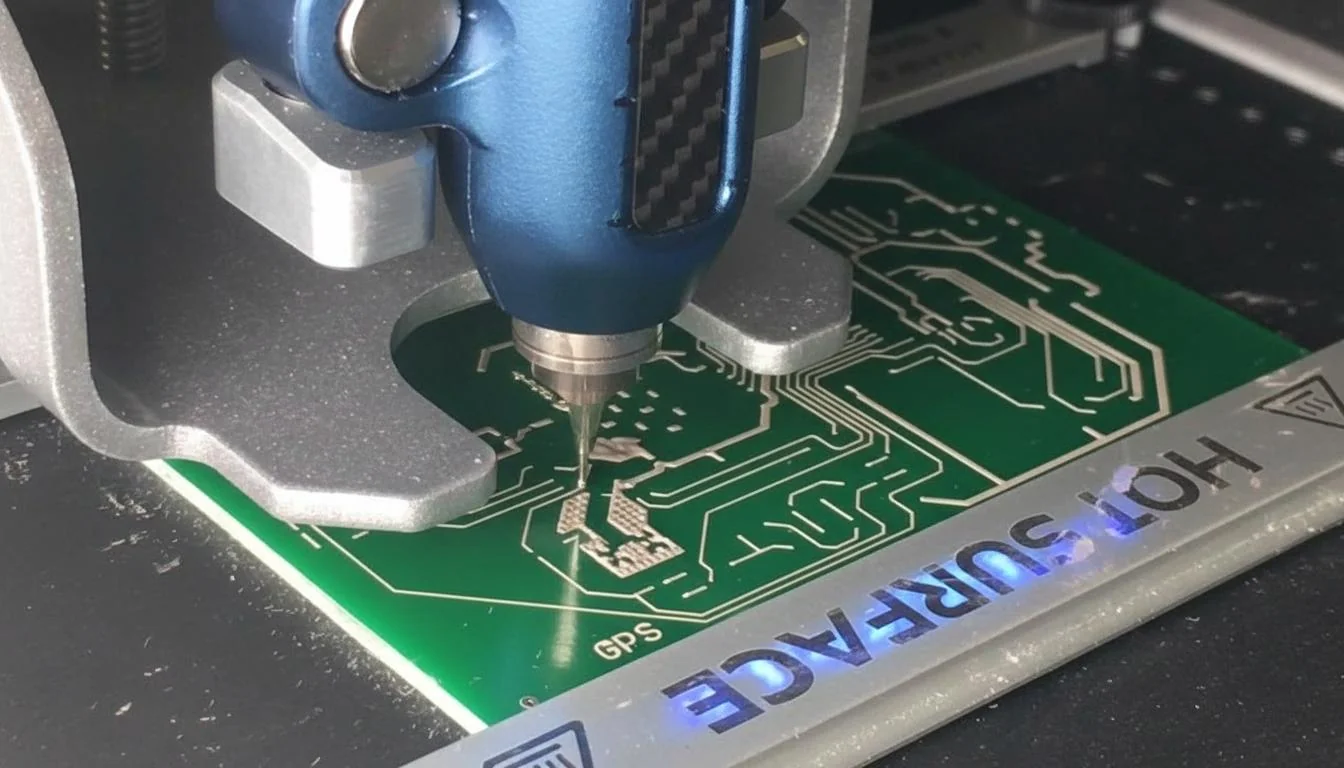

Desktop PCB printers show up in research settings. Voltera’s V-One is a known example. It uses a small work area and tool swaps. It can heat the bed to cure ink and reflow solder for small builds. That fits how labs work.

Customer stories from universities are common in this space. Flexible electronics teams and student satellite teams often need fast iteration. They accept trade-offs. They value learning speed.

On the production floor, the goals are different. Repeatability matters more than novelty. Traceability matters. Certifications matter.

If you buy electronics for regulated markets, ask about ISO 9001 quality systems. For medical, ISO 13485 is common. For automotive, IATF 16949 is common. For safety marking, UL recognition can matter for some boards. For materials, RoHS and REACH are typical requirements in many regions.

At WellCircuits, we have seen buyers succeed when they align tools to the real goal. A lab tool is great for proof of concept. Production still needs controlled PCBA.

How to choose the right path: a simple decision checklist

You might wonder which route is “best.” I would ask a different question. What is the cost of a wrong board this month?

If you need one board tonight for learning, a home method can be fine. If you need 200 units that must pass functional test, use a real PCBA line. If you need daily design changes, consider jet printing or quick-turn stencils.

Here is the checklist I use in kickoff calls. It keeps the decision grounded.

Table: Decision guide for PCB printing and manufacturing options

Same design, many builds	Stencil paste printing + SPI	High repeatability and speed	Stencil revision cost
High mix, many variants	Jet paste printing	No stencil changeover delays	Upfront machine cost
One-off learning board	Etch-resist plotting or resin mask	Fast and hands-on	Low yield and safety handling
Regulated or mission-critical	Qualified PCB + PCBA supplier	Standards, traceability, testing	Lead time planning required

FAQ

Can a PCB board printer machine print the copper traces?

Most machines called “PCB printers” do not print copper. In factories, the printer usually deposits solder paste. Copper traces are made in PCB fabrication using imaging, plating, and etching. Some lab tools dispense conductive ink, but it will not match copper performance.

Is a 3d printer PCB board good enough for a product?

It can work for demos with wide traces and low current. It is rarely suitable for shipped products. Trace consistency and adhesion are common issues. Safety and repeatability are also concerns. For products, use a qualified PCB fab and controlled assembly process.

What standards should I reference for solder joint quality?

Use IPC-A-610 for acceptability criteria. Use J-STD-001 for soldering requirements. If rework is expected, IPC-7711/7721 is the common guide. These standards help you avoid vague quality debates during inspection.

How do I estimate pcb board printer price without vendor quotes?

Start by defining the printer type. Stencil printers, jet printers, and lab ink systems sit in different budget classes. Then list recurring costs. Include stencils, paste, cleaning supplies, maintenance, and inspection time. A short pilot run gives the best real number.

What tests reduce paste printing defects the most?

SPI is the biggest lever for past issues. It checks volume and alignment before placement. AOI after reflow catches many visible faults. X-ray is important for BGA and hidden joints. These tools support stable yields on fine pitch designs.

When does printer PCB board repair make sense?

Repair makes sense when the board is expensive, rare, or tied to calibration. It also helps when you have known failure modes. For consumer printers, replacement is often cheaper. If you repair, use ESD controls, and follow IPC-7711/7721 practices.

Conclusion

A “PCB board printer” can be a lifesaver or a distraction. I have watched teams win time by printing, pasting, or jetting deposits. I have also watched teams burn a week chasing perfect home-etched traces. The tool must match the goal.

If you need fast learning, a plotting or resin mask method can teach you a lot. Keep designs simple and stay safe with chemicals. If you need stable yields, align to IPC standards and use controlled inspection. If you want help deciding, share your stack-up needs, smallest pitch, and target volume. WellCircuits can review your files and point you to the right build path. Ask for a DFM check and a paste process plan. It will save you rework later.
