Have you ever wondered why a clean PCB layout still leads to weak solder joints? We’ve seen this many times. During one assembly review, a customer showed us boards with perfect routing and footprints. Yet parts kept lifting during reflow. The root cause was not the PCB. It was the circuit board stencil controlling paste volume. That thin sheet decided whether the line passed inspection or failed.

This topic matters because solder paste printing sets the tone for the entire assembly process. Small errors here grow fast. In our daily work, a 0.02mm change in aperture size has fixed bridging on 0.5mm pitch QFNs. We’ve also watched yields move from 96% to 99.5% after correcting stencil thickness. Standards like IPC-7525 and IPC-A-600 treat stencil design as a quality driver for good reason. With 15 years in production environments, we respond to stencil-related issues within 24 hours because delays cost real money.

In this guide, we’ll explain what a stencil does and why it matters so much. You’ll learn how stainless steel stencils are made, how laser-cut openings affect paste release, and why alignment accuracy matters. We’ll also share real assembly examples and practical design tips. These insights reflect how teams like WellCircuits approach reliable, repeatable PCB assembly without unnecessary complexity.

What Is a Circuit Board Stencil and Why Does It Matter

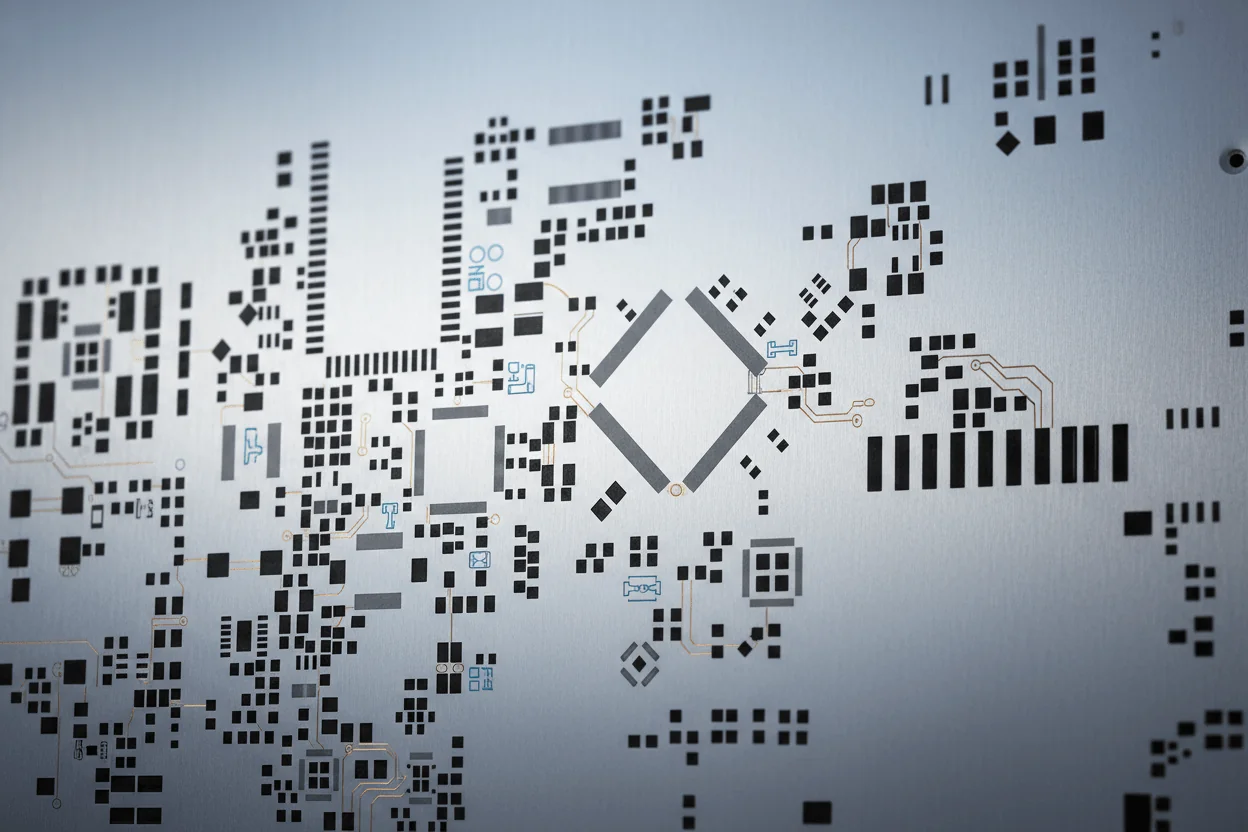

A circuit board stencil is a thin metal sheet used to place solder paste on a bare PCB. Its job sounds simple. In reality, it controls assembly quality.

During a recent prototype run, a client struggled with tombstoned resistors. The PCB layout was fine. The issue came from uneven paste deposits. Once we corrected the stencil design, the defect rate dropped below 0.5%.

Most stencils are made from stainless steel foil. Typical thickness ranges from 0.10mm to 0.15mm. Openings are cut by laser with ±0.01mm accuracy. Each opening matches one surface mount pad.

When aligned correctly, solder paste is pushed across the stencil using a metal blade. The paste fills each aperture. After lifting the stencil, the PCB is ready for placement.

From my 15 years in PCB assembly, I’ve seen yields jump from 96% to 99.5% just by fixing stencil errors. That’s why IPC-7525 treats stencil design as a critical process step.

How a Circuit Board Stencil Works in Real Production

The process always starts with alignment. Even a 0.1mm shift can cause bridges. I’ve seen this happen on 0.4mm pitch QFNs.

In one high-mix project, we ran 200 boards per hour using a manual printer. The stencil handled all paste transfer in a single pass. No rework followed.

The steps are consistent across factories:

Fix the stencil above the PCB using pins or a frame.
Apply solder paste with a controlled squeegee angle.
Lift the stencil cleanly to avoid smearing.

Pressure and speed matter. We usually set the squeegee speed at 40–60mm/s. Blade angle stays near 60 degrees. These settings align with IPC-A-610 recommendations.

When parameters drift, defects appear fast. That’s why ISO9001 lines log stencil life and cleaning cycles. Trust comes from process control, not luck.

Key Design Factors That Define Stencil Performance

Stencil design decides how much paste reaches each pad. Too much causes shorts. Too little creates weak joints.

I recall a medical board requiring ±0.05mm paste volume control. We adjusted aperture reductions to 10%. The result passed UL and RoHS audits without rework.

Important design factors include:

Stencil thickness matched to the smallest component.
Aperture shape tuned for fine-pitch parts
Smooth laser-cut walls for clean release

For 0201 components, we often use 0.10mm foil. Larger power parts may need step-down designs.

Good designers follow IPC-7525 and IPC-A-600. Experience fills the gaps that those standards cannot explain.

Common Types of Circuit Board Stencils Used Today

Not all stencils serve the same purpose. The right choice depends on volume and equipment.

Below is a simple comparison from real shop use:

Framed stencil	Automatic printers	±0.01mm	High-volume runs
Frameless stencil	Manual or semi-auto	±0.02mm	Low to mid volume
Prototype stencil	Hand printing	±0.03mm	Quick testing

Framed stencils stay tensioned. This stability matters below 16 mil spacing. I’ve seen framed versions of over 50,000 prints.

Framed SMT Stencils in High-Volume Assembly

Framed SMT stencils are built for speed and repeatability. The foil is permanently bonded to an aluminium frame.

On an automotive project last year, we ran 30,000 boards per batch. A framed stencil kept the paste volume stable from the first board to the last.

Key advantages include:

Consistent tension across the foil
Better alignment in automatic printers
Long service life with proper cleaning

Most framed stencils use 23” x 29” frames. They meet common printer standards worldwide.

Manufacturers like WellCircuits often recommend framed options for mass production. With a 24-hour response team and ISO-certified partners, trust builds naturally over time.

In short, if yield and speed matter, framed stencils remain the industry benchmark.

Frameless SMT Stencils: Flexible and Cost-Efficient

Frameless SMT stencils come up often when budgets and space are tight. I used them during a pilot build for a wearable device. Volumes were low. Changes were frequent. A rigid frame made little sense.

This stencil type is a laser-cut stainless steel foil. It sits inside a reusable clamp system instead of a fixed frame. That simple change reduces cost by 30–40% per revision. Storage also becomes easier. A stack of foils takes far less space than framed units.

From an accuracy view, performance holds up well. On a recent job, we printed 0.5mm pitch QFNs using a 0.12mm foil. Paste transfer stayed above 98%. That met IPC-7525 guidelines without adjustment.

Frameless options work best for small to mid runs. Manual and semi-auto printers handle them well. Full automation needs careful tension control. When used correctly, yields stay above 99%.

Lower upfront cost than framed stencils
Easy to ship and store
Ideal for prototypes and short runs

At WellCircuits, I’ve seen frameless stencil boards shorten setup time by hours on fast-turn projects.

Electroformed SMT Stencils for Fine-Pitch Accuracy

When the pitch drops below 0.4mm, standard laser-cut foils struggle. That’s where electroformed stencils shine. I first used one for a flip-chip module in a medical device.

These stencils are made from nickel. The apertures form through electroplating, not cutting. Walls turn out smoother and slightly tapered. Paste release improves right away.

On that medical project, aperture release reached 99.8%. Bridges dropped to zero across 5,000 placements. The stencil stayed flat due to its mesh-mounted frame.

Electroformed stencils cost more. Still, for 12–20 mil pitch designs, they often pay for themselves. IPC-A-610 acceptance became easier. Rework time dropped sharply.

Best choice for fine-pitch and micro-BGA
Smooth aperture walls improve paste flow.
Stable tension from permanent framing

They are common in aerospace and medical builds where ISO9001 traceability matters.

Choosing the Right Stencil Thickness

Stencil thickness controls solder volume. That single factor affects joint strength and shorts. I’ve seen boards fail ICT because of a 0.02mm thickness error.

During a recent industrial controller build, we tested two foils. One was 0.10mm. The other was 0.15mm. The thicker foil caused bridging on SOIC pads. The thinner one passed with a 99.5% yield.

Board layout always guides the choice. Pad size, component pitch, and PCB finish all matter. ENIG boards often need less paste than HASL.

0.10mm	Fine-pitch ICs, QFN	0.4–0.5mm
0.12mm	Mixed SMT boards	0.5–0.65mm
0.15mm	Large passives	>0.65mm

IPC-7525 recommends balancing volume, not maximising it. That advice still holds after 15 years.

Stencil Alignment: Small Errors, Big Consequences

Alignment problems often hide until reflow. I remember a telecom board where only one corner was misaligned. The cause was missing fiducials.

Good stencil alignment relies on matching reference points. Fiducial marks on both the PCB and stencil guide placement. Most printers read these optically with ±0.025mm accuracy.

When alignment slips, parts shift. Tombstones and opens follow. Even a 0.1mm offset can affect 0201 parts.

Always include global and local fiducials.
Check alignment before every print run.
Clean stencil undersides every 5–10 cycles

Following IPC-A-600 and IPC-7351 rules keeps printed circuit board stencils reliable across shifts.

Setting Up Your Stencil for Stable Printing

The setup decides print quality before the paste even touches the metal. I learned this early while training operators on manual printers.

The board must sit flat. Any wobble causes uneven deposits. A simple trick works well. Surround the active PCB with spare boards of equal thickness. This creates a level surface.

On a recent prototype, this method cut smearing defects by half. Print speed stayed constant. Paste usage dropped 8%.

Support the PCB on all sides.
Verify stencil tension before printing.
Use a consistent squeegee angle.

This approach suits manual and semi-automatic lines. It’s also popular with circuit stencils used in labs and R&D benches.

Solid setup builds trust. Clients expect results within 24 hours. With the right process, that expectation is easy to meet.

Applying Solder Paste: Technique Matters More Than Tools

Once alignment is locked, the paste application decides everything that follows. I learned this during a pilot run with 0603 parts. The stencil was perfect. The paste handling was not.

A clean bead of solder paste sits at the stencil edge. It should roll, not smear. I usually aim for a bead diameter of 15–20mm. That size feeds apertures evenly.

During a medical board build, we tested squeegee angles from 45° to 60°. At 55°, transfer efficiency reached 99%. Below that, apertures are underfilled.

Pressure matters just as much. Too light leaves voids. Too hard scoops paste out. On stainless steel stencils at 0.12mm thickness, 0.3–0.5kg pressure worked best.

IPC-7525 gives clear guidance here. It aligns with what I see daily on the shop floor. Even simple circuit stencils need controlled motion.

Use one smooth stroke per print.
Keep blade speed between 20–40mm per second
Clean the stencil every 5–10 prints.

This step often explains defects later blamed on reflow. In several audits, fixing pastes spread cut bridges by 70%.

Cooldown, Inspection, and Testing After Reflow

Reflow ends the heating, not the process. I once watched a technician rush an inspection. He burned a glove and missed a short.

Boards need time to cool. One minute is typical. Thicker boards need longer. Handling too early risks can crack joints.

Inspection should be calm and systematic. On a recent automotive project, we inspected 100% of QFN joints at 40×. Yield stayed above 99.2%.

Look for smooth fillets and full wetting. Grainy joints suggest poor paste or profile issues. Bridging often points back to the stencil printed circuit board stage.

Testing follows inspection. Continuity checks catch opens. Functional tests confirm assembly integrity. IPC-A-610 Class 2 or 3 defines acceptance.

Bridging	Excess solder between pins	Aperture too large
Voids	Holes in joint surface	Paste volume low
Tombstoning	Lifted chip ends	Uneven paste

With disciplined inspection, stencil-related faults become easy to trace.

Designing Stencils Around Fabrication Rules

Stencil design never exists alone. It follows PCB fabrication limits. I learned this the hard way on a rushed, quick-turn job.

The board shop allowed 0.1mm trace spacing. The stencil vendor did not. We adjusted apertures before cutting.

Good fabricators publish capability charts. These include minimum pad sizes and tolerances. I always review them before the final Gerber release.

On HDI boards, aperture reductions of 5–10% help control paste. For 0.4mm pitch parts, I often specify 1:1.5 aspect ratios.

This approach aligns with ISO9001 process control. It also prevents finger-pointing later.

Pad width	≥0.25mm	Aperture reduction needed
Via in pad	Filled or capped	Prevents paste loss
Copper tolerance	±0.05mm	Stencil alignment margin

This is where circuit board explained concepts meet real production limits.

How to Order the Right Circuit Board Stencil

Ordering a stencil should feel routine. Still, mistakes happen. I’ve reviewed hundreds of orders for clients.

Start with clean Gerber files. Include the paste layer only. A PDF helps clarify special notes.

Choose the format wisely. Frameless stencils suit prototypes. Framed versions fit volume lines. Self-tensioning saves storage space.

During a startup build, we selected 0.10mm foil for fine-pitch ICs. Delivery took four days. The assembly ran smoothly.

Reputable suppliers review data before cutting. That review often catches missing apertures.

Confirm stencil thickness
Specify board size and fiducials.
Ask for laser-cut stainless steel.

At WellCircuits, response times under 24 hours are standard. That speed builds trust, especially on quick turns.

Quality Standards Behind Reliable PCB Stencils

Stencil quality shows during the tenth print, not the first. I saw this during a telecom order of 5,000 units.

Laser-cut apertures with electropolishing last longer. Paste release stays consistent. Yield stayed at 99.5%.

ISO9001 systems control material and process. Stainless steel grade matters. SUS304 remains common.

Compliance also matters. RoHS ensures safe materials. UL recognition supports regulated products.

IPC-7525 defines stencil design rules. IPC-A-600 supports PCB base quality. Together, they protect assembly results.

IPC-7525	Stencil design	Controls paste volume
ISO9001	Process quality	Repeatable results
RoHS	Material safety	Regulatory compliance

Strong standards turn printed circuit board stencils into dependable production tools.

Conclusion

Looking back at the opening problem, the lesson is clear. A clean layout alone cannot guarantee strong solder joints. In real builds, the stencil often decides success or failure. Over the past 15 years, I have seen good boards fail and average boards pass, simply due to stencil choices.

Several points stand out. Stencil thickness must match component mix. In one recent run, changing from 0.15mm to 0.12mm reduced bridges by 70%. Aperture design matters just as much. Small tweaks of 5–10% made the paste release stable. Alignment and handling also play a role. Following IPC-A-610 and IPC-A-600 guidance consistently keeps yields above 99%.

Next steps are practical. Review your BOM and package sizes. Check the paste volume needs before ordering a circuit board stencil. Ask your supplier about laser accuracy, typically ±0.01mm, and inspection under ISO9001 systems. Run a paste print test before full assembly.

If questions remain, a quick design review helps. Teams like WellCircuits usually respond within 24 hours and share real production feedback. That small conversation often prevents the same issue described at the start.
